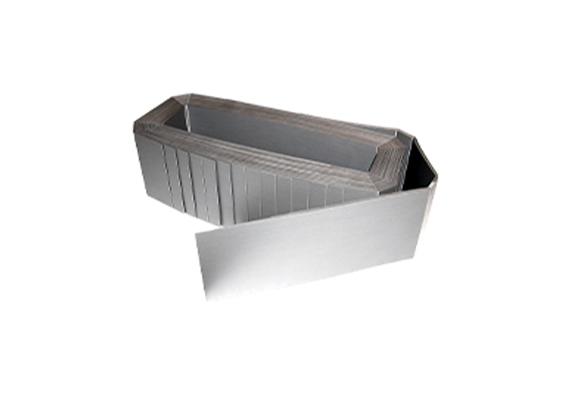

Distributed Gap Cores

Distributed gap cores are a specialized type of magnetic core used in transformer and inductor designs to manage and distribute magnetic energy more effectively. These cores are engineered with multiple small gaps distributed throughout the core material, rather than a single large gap, to enhance performance characteristics.

Distributed gap cores consist of a magnetic material where multiple small air gaps are distributed throughout the core.
